Flat anterior fontanel


The Abnormal Fontanel | AAFP

JOSEPH KIESLER, M.D., AND RICK RICER, M.D.

Am Fam Physician. 2003;67(12):2547-2552

The diagnosis of an abnormal fontanel requires an understanding of the wide variation of normal. At birth, an infant has six fontanels. The anterior fontanel is the largest and most important for clinical evaluation. The average size of the anterior fontanel is 2.1 cm, and the median time of closure is 13.8 months. The most common causes of a large anterior fontanel or delayed fontanel closure are achondroplasia, hypothyroidism, Down syndrome, increased intracranial pressure, and rickets. A bulging anterior fontanel can be a result of increased intracranial pressure or intracranial and extracranial tumors, and a sunken fontanel usually is a sign of dehydration. A physical examination helps the physician determine which imaging modality, such as plain films, ultrasonography, computed tomographic scan, or magnetic resonance imaging, to use for diagnosis.

Examination of a newborn's fontanels offers the physician a window into the infant's developing brain and general state of health. The word “fontanel” is derived from the Latin fonticulus and the Old French fontaine, meaning a little fountain or spring.1–3 The normal fontanel varies widely in shape and time of closure. The incidence of abnormal fontanel differs, depending on the abnormality and cause.

Anatomy of the Fontanels

Fontanels are the fibrous, membrane-covered gaps created when more than two cranial bones are juxtaposed, as opposed to sutures, which are narrow seams of fibrous connective tissue that separate the flat bones of the skull.

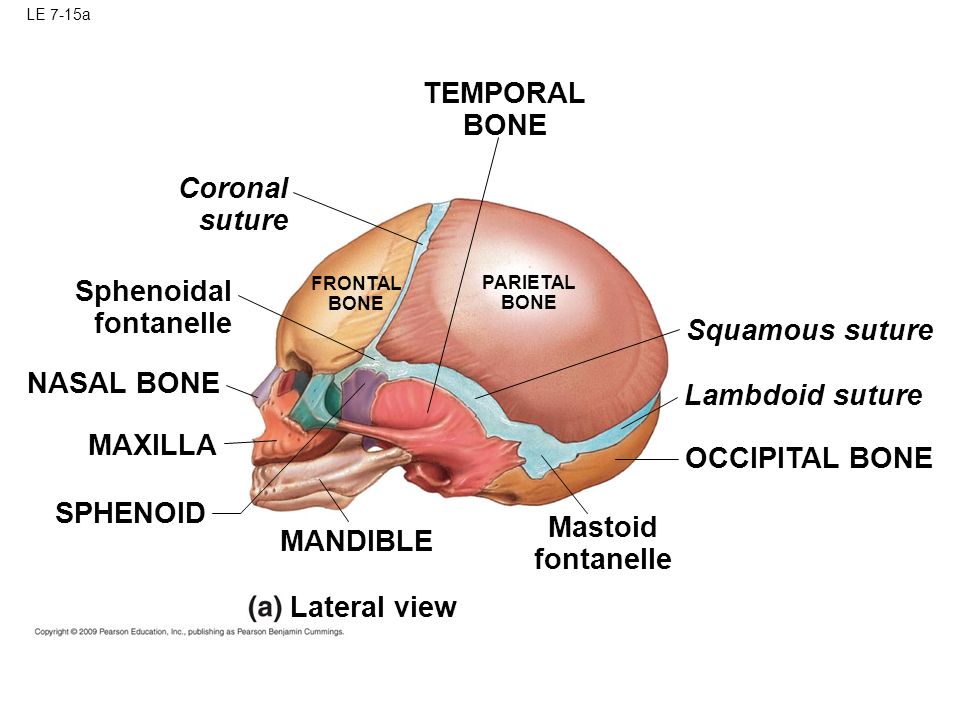

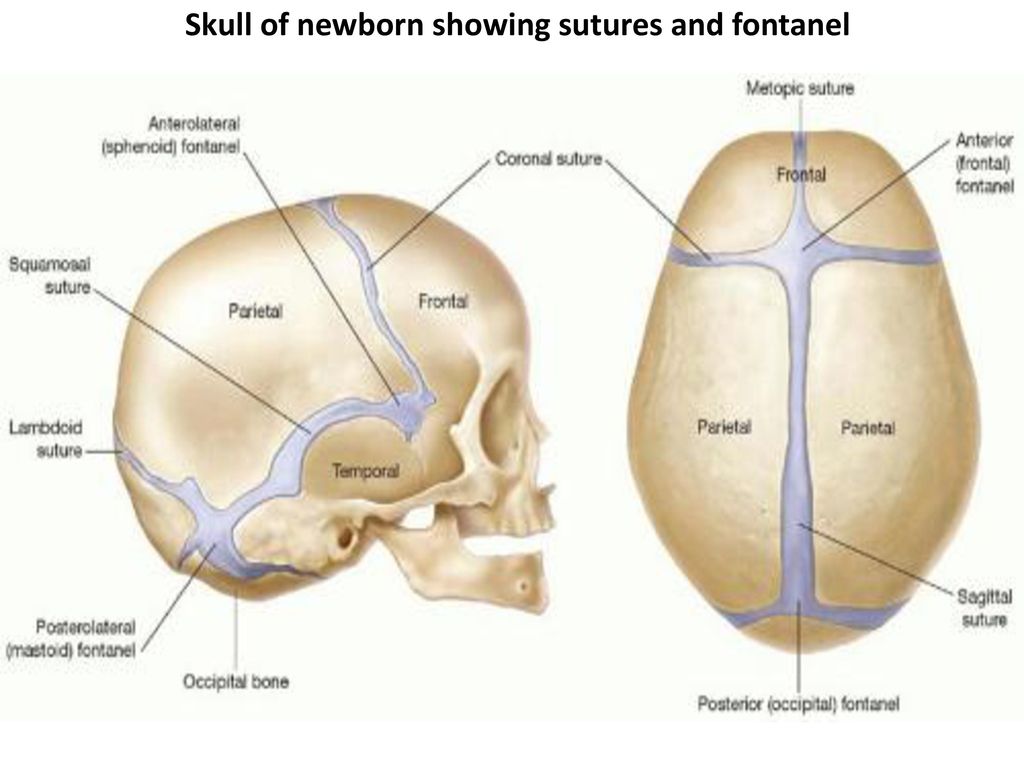

A newborn has six fontanels (Figure 1): the anterior and posterior, two mastoid, and two sphenoid.4 The rhomboid-shaped anterior fontanel, located at the juncture of the two parietal and two frontal bones, is the most prominent. The superior sagittal dural venous sinus is partially situated beneath the anterior fontanel. The triangular posterior fontanel is located at the junction of the occipital and two parietal bones.1,5

Growth and Development of the Skull

The flat bones of the skull develop as part of the membranous neurocranium. Needle-like spicules radiate from a primary ossification center toward the periphery. These irregular bone islands are remodeled into flattened sheets of bone by osteoblast and osteoclast activity. During fetal and postnatal life, the membranous bones enlarge by resorption centrally and by apposition of new layers at the edges of the sutures.5

Growth of the cranium is triggered by brain growth, two thirds of which occurs by two years of age. Except for the metopic suture between the frontal bones, which closes at two years of age, the sutures remain open until brain growth ceases in the second decade of life.6 Once a suture is fused, growth perpendicular to that suture is restricted. Therefore, fontanel size is influenced by brain growth, dural attachments, suture development, and osteogenesis.7

Examination of the Fontanels

PHYSICAL EXAMINATION

The newborn's skull is molded during birth. The frontal bone flattens, the occipital bone is pulled outward, and the parietal bones override. These changes aid delivery through the birth canal and usually resolve after three to five days.8 The newborn's skull should be evaluated for shape, circumference, suture ridges, and size of anterior and posterior fontanels. Size is calculated by the average of the anteroposterior and transverse dimensions9(Figure 2).

The fontanels should be examined while the infant is calm and held in both supine and upright positions. In select cases, such as newborns with multiple hemangiomas or heart failure, the anterior fontanel is auscultated to detect a bruit, which can indicate an arteriovenous malformation.10 Palpation of the fontanel in the upright position may reveal a normal, slight pulsation. If the fontanels are closed and intracranial pressure has increased, percussion produces a “cracked-pot” sound (dull, lacking resonance), known as Macewen's sign.

Any associated dysmorphic facial features should be noted. Asymmetry of the head is detected by looking at the infant's head from above. Head circumference is an important indicator of brain development and should be monitored over time, especially if a fontanel closes early.6,11

IMAGING

Plain radiographs of the skull are the least expensive way to evaluate the sutures and cranial bones, but they are limited by the lack of mineralization of the neonatal cranium. Bridging of bone over a suture, an indistinct suture, or sclerosis along the suture margins indicates fusion. Cortical thinning, widened sutures, and a beaten-metal appearance known as “thumbprinting” are associated with increased intracranial pressure.12

If the anterior fontanel is open, ultrasonography is useful to evaluate ventricular dilatation.13 A computed tomographic (CT) scan can detect a fused suture, dilated ventricles, enlarged subarachnoid space, brain size, or an intracranial or extracranial mass.14 Magnetic resonance imaging (MRI) can detect cortical and white-matter abnormalities, such as degenerative diseases, and document the extent of calvarial masses. Disadvantages of CT scans and MRI include cost, the need for sedation, and, in the case of CT, irradiation.13,15

Normal Fontanel

POSTERIOR FONTANEL

At birth, the average size of the posterior fontanel is 0.5 cm in white infants and 0.7 cm in black infants.16 The fontanel usually is completely closed by two months of age.10

ANTERIOR FONTANEL

The key feature of a normal anterior fontanel is variation. On the first day of an infant's life, the normal fontanel ranges from 0.6 cm to 3.6 cm, with a mean of 2.1 cm.17 Black infants have larger fontanels (1.4 cm to 4.7 cm).16 The fontanels of full-term and preterm infants are similar in size once preterm infants reach term. The fontanel can enlarge in the first few months of life,18 and the median age of closure is 13.8 months. By three months of age, the anterior fontanel is closed in 1 percent of infants; by 12 months, it is closed in 38 percent; and by 24 months, it is closed in 96 percent. Anterior fontanels tend to close earlier in boys than in girls; the initial size of the fontanel is not a predictor of when it will close.19

Abnormal Anterior Fontanel

LARGE FONTANEL AND DELAYED FONTANEL CLOSURE

A list of the medical conditions associated with a large fontanel or delayed fontanel closure can be found in Table 1.20,21 Achondroplasia, congenital hypothyroidism, Down syndrome, rickets, and increased intracranial pressure are among the most common conditions.

Achondroplasia is an autosomal-dominant disorder of the epiphyseal plate cartilage that results in dwarfism.22 At birth, the infant has an enlarged head, low nasal bridge, prominent forehead, and shortened extremities, in addition to a large fontanel.9

An elevated thyroid-stimulating hormone level on a newborn screening usually detects congenital hypothyroidism, but an abnormally large anterior fontanel in conjunction with an open posterior fontanel can be an early sign of the disorder. Myxedema and growth deficiency are later signs.

ConditionsEnlarged fontanelDelayed closure
Most common
Achondroplasia✓✓
Congenital hypothyroidism✓✓
Down syndrome✓✓
Increased intracranial pressure✓✓
Normal variation✓✓
Familial macrocephaly✓
Rickets✓✓
Less common
Skeletal disorders
Acrocallosal syndrome (seizures, polydactyly, mental retardation)✓
Apert's syndrome (craniosynostosis, proptosis, hypertension)✓✓
Campomelic dysplasia (prenatal growth deficiency, large cranium, bowed legs)✓
Hypophosphatasia (polyhydramnios, short, deformed limbs, soft skull)✓✓
Kenny-Caffey syndrome (hypoparathyroidism, dwarfism, macrocephaly)✓✓
Osteogenesis imperfecta (shortened limbs, wormian calvarial bones)✓✓
Chromosomal abnormalities
Trisomy 13 (polydactyly, microcephaly, cleft lip and palate)✓✓
Trisomy 18 (growth retardation, small cranium, open metopic suture)✓✓
Congenital infections
Rubella (low birth weight, cataracts, “blueberry muffin” skin lesions)✓✓
Syphilis (saddle nose deformity, joint swelling, maculopapular rash)✓✓
Drugs and toxins
Aminopterin-induced malformation (craniosynostosis, absences of frontal bones, hypertelorism)✓✓
Fetal hydantoin syndrome (microcephaly, broad nasal bridge, hypoplasia of nails)✓✓
Dysmorphogenetic syndromes
Beckwith-Wiedemann syndrome (macrosomia, abdominal wall defect, macroglossia)✓✓
Zellweger syndrome (high forehead, flat occiput, abnormal ears, hypotonia)✓✓
Cutis laxa (pendulous skin folds, hoarse cry)✓✓
VATER association (vertebral defects, anal atresia, tracheoesophageal fistula, renal dysplasia)✓✓
Otopalatodigital syndrome (frontal bossing, broad terminal phalanges, syndactyly)✓
Miscellaneous
Malnutrition (poor weight gain, asymmetric growth)✓✓
Hydranencephaly (macrocephaly, thinned skull vault, primitive reflexes preserved)✓
Intrauterine growth retardation (birth weight less than 2 standard deviations below mean)✓

A third fontanel between the anterior and posterior fontanels is associated with hypothyroidism and Down syndrome. 23 Infants with Down syndrome often have a single palmar crease, flat occiput and facies, rounded ears, and slanted palpebral fissures.

Rickets resulting from vitamin D deficiency rarely occurs in the United States but is one of the five most common childhood diseases in developing nations. Risk factors include breastfeeding without vitamin D supplementation, dark skin, and low sunlight exposure. One of the signs of rickets is craniotabes, a softened outer table of the occipital bone that buckles under pressure, producing a reaction similar to a ping-pong ball indenting and popping back out. Craniotabes is not present at birth but develops over the first few months of life. Craniotabes can occur normally in premature infants and in children younger than six months.18,24,25 Disorders associated with increased intracranial pressure that results in an abnormally large fontanel or delayed fontanel closure are discussed later in this article.

SMALL FONTANEL OR EARLY FONTANEL CLOSURE

Fontanel closure that occurs as early as three months of age can be within normal limits, but careful monitoring of head circumference in such cases is essential to exclude a pathologic condition. The fontanel sometimes can be open but difficult to detect during a physical examination. Craniosynostosis and abnormal brain development are associated with a small fontanel or early fontanel closure.20

Most common
Chromosomal defects
Congenital infections
Fetal alcohol syndrome
Hypoxic-ischemic encephalopathy
Normal genetic variation
Others
Autosomal dominant or recessive types
Dysmorphic syndromes
Malnutrition
Maternal phenylketonuria
Normal variation
Structural brain defects
Universal craniosynostosis

Craniosynostosis is the premature closing of one or more cranial sutures, resulting in an abnormal head shape. The condition can be idiopathic or caused by hyperthyroidism, hypophosphatasia, rickets, or hyperparathyroidism.20 It is also associated with more than 50 syndromes, such as Apert's, Crouzon's and Pfeiffer's. The risk of primary isolated craniosynostosis is 0.4 per 1,000 live births, and the sagittal suture is most commonly involved.

Examination at birth of an infant with craniosynostosis might reveal a ridge over a suture or lack of movement along a suture when alternating sides are gently pressed. Overriding of sutures from the normal molding process should resolve within the first few days of life.9 Later physical findings in infants with primary craniosynostosis include stunted cranial growth, increased intracranial pressure, proptosis, strabismus, and hearing impairment.26

Plain radiographs of the skull are used for initial evaluation. If craniosynostosis is present, a three-dimensional CT scan is obtained to detect any underlying brain abnormalities and to assist planning for surgery. 27

Abnormal brain development that results in microcephaly also can cause a small anterior fontanel or early fontanel closure. Prenatal trauma to the brain, such as maternal alcohol abuse, and postnatal trauma, such as hypoxia, are potential causes of microcephaly.20Table 220,28 lists the differential diagnosis for microcephaly.

BULGING OR SUNKEN FONTANELS

Disorders associated with increased intracranial pressure can cause a bulging anterior fontanel. The most common disorders are meningitis, encephalitis, hydrocephalus, hypoxic-ischemic injury, trauma, and intracranial hemorrhage.20Table 320 lists the differential diagnoses for a bulging fontanel. Palpation may reveal a tense fontanel that feels similar to bone.23

Meningitis and encephalitis also cause temperature instability, poor feeding, and irritability. If meningitis is suspected, a lumbar puncture should be performed to evaluate the cerebrospinal fluid for Gram stain, protein, glucose, cell count, and culture. A CT scan of a child with meningitis shows the subarachnoid space expanding into the anterior fontanel.21

Hydrocephalus can result from an imbalance between the production and the absorption of cerebral spinal fluid. This condition affects 3 per 1,000 live births. Most cases occur before two years of age, while the anterior fontanel is still open. Physical signs include an abnormal rate of head growth, frontal bossing of the forehead, widened sutures, and dilated scalp veins. Imaging with ultrasonography, CT, or MRI shows enlarged ventricles in the absence of brain atrophy. Because ultrasonic waves will not penetrate bone, the anterior fontanel must be open if ultrasonography is used for diagnosis.13,15

Hypoxic-ischemic injury results in cytotoxic edema and diffuse brain swelling. Associated findings include poor feeding, decreased muscle tone, respiratory difficulties, and alterations in consciousness. Intracranial hemorrhage can be intraventricular, parenchymal, subarachnoid, or subdural. Associated findings include decreased muscle tone, seizures, decreased hematocrit, vomiting, and alterations in consciousness.20

Tumors also should be considered in the differential diagnosis of a bulging fontanel. Dermoid tumors of the scalp are the most frequent lesions presenting over the anterior fontanel and also may be found over the posterior fontanel.29,30 They usually are slow-growing and nontender, and they are twice as common among girls. A CT scan is necessary to exclude intracranial involvement.30 Brain tumors, which can present with signs of increased intracranial pressure and focal neurologic findings, are best diagnosed with MRI.31

The primary cause of a sunken fontanel is dehydration. Other signs include reduced peripheral perfusion, poor skin turgor, and sunken eyes.32

Hydrocephalus
Space-occupying lesions
Brain tumor
Intracranial hemorrhage
Brain abscess
Infections
Meningitis
Encephalitis
Roseola
Shigella
Mononucleosis
Lyme disease
Mastoiditis
Cerebral malaria
Cysticercosis
Poliomyelitis
Endocrine disorders
Hyperthyroidism
Hypoparathyroidism
Pseudohypoparathyroidism
Addison's disease
Hypothyroidism
Cardiovascular disorders
Congestive heart failure
Dural sinus thrombosis
Hematologic disorders
Polycythemia
Anemia
Leukemia
Metabolic disorders
Diabetic ketoacidosis
Electrolyte disturbance
Hepatic encephalopathy
Uremia
Galactosemia
Hypophosphatasia
Osteoporosis
Maple syrup urine disease
Miscellaneous
Hypervitaminosis A
Lead encephalopathy
Aluminum toxicity
Brain contusions
Hypoxic-ischemic injury
Coronal synostosis
Trauma
Dermoid cyst

Final Comment

An abnormal fontanel in an infant can indicate a serious medical condition. Therefore, it is important to understand the wide variation of normal, how to examine the fontanels, and which diagnoses to consider when an abnormality is found. Consultation with a pediatric neurosurgeon should be considered if the diagnosis or presence of an abnormality is unclear.

About the fontanelle | Pregnancy Birth and Baby

About the fontanelle | Pregnancy Birth and Baby beginning of content

5-minute read

Listen

What is a fontanelle?

A fontanelle is a ‘soft spot’ of a newborn baby’s skull. It is a unique feature that is important for the normal growth and development of your baby’s brain and skull. Your health team will check your baby’s fontanelles during routine visits.

If you touch the top of your baby’s head you can feel a soft spot in between the bones — this is a fontanelle.

A newborn baby’s skull is made up of sections of bone known as plates that are joined together by fibrous joints called sutures. The sutures provide some flexibility and allow your baby’s head to narrow slightly as it travels through the birth canal. The sutures also enable your baby’s head to grow in the first years of life.

There are 2 fontanelles on your baby’s skull. These are the skin-covered gaps where the skull plates meet. The anterior fontanelle is at the top of your baby’s head, and the posterior fontanelle is located at the back of your baby’s head.

Illustration showing the anterior and posterior (front and back) fontanelles of a baby's skull.

When will my baby’s fontanelles close?

The posterior fontanelle usually closes by the time your baby is 2 months old. The anterior fontanelle can close any time between 4 and 26 months of age. Around 1 in every 2 babies will have a closed fontanelle by the time they are 14 months old.

Can I touch my baby’s fontanelles?

Yes, you can gently touch your baby’s fontanelles. If you run your fingers softly along your baby’s head you are can probably feel them. Your doctor will touch your baby’s fontanelles as part of their routine medical examination. There is no need to be concerned or worried about touching your baby’s fontanelles as long as you are gentle.

What does a normal fontanelle look like?

Your baby’s fontanelle should feel soft and flat. If you softly touch a fontanelle, you may at times feel a slight pulsation — this is normal. If a fontanelle changes, or feels different to how it usually does, show your doctor or midwife as it may be a sign that your baby’s health may need to be checked.

Sunken fontanelle

If you notice that your baby’s fontanelles are low or sunken, your baby may be dehydrated.

However, you may notice other signs of dehydration in your baby before their fontanelles becomes sunken.

Other signs of dehydration include:

  • having fewer wet nappies
  • not feeding well
  • loosing fluids from vomiting or diarrhoea
  • perspiration (or sweating) in very hot weather
  • being less alert or floppy

Bulging fontanelle

A bulging or swollen fontanelle may be a sign of a number of serious but rare conditions including meningitis or encephalitis (infections in the brain), cerebral haemorrhage (bleeding in the brain), hydrocephalus, an abscess or another cause of increased pressure in the brain.

If you think that your baby’s fontanelles are bulging or sunken, seek medical advice immediately.

What if a fontanelle closes too soon?

Your baby’s fontanelles may close early. This can happen for several reasons. Your baby may have hyperthyroidism (high levels of the thyroid hormone) or hyperparathyroidism (high levels of parathyroid hormone). Another cause of early fontanelle closure is a condition known as craniosynostosis. Craniosynostosis occurs when one or more of the fibrous joints (sutures) between the bone plates in a baby’s skull fuse too early, before the brain has finished growing. As the brain continues to grow, it pushes on the skull from the inside but cannot expand into the closed over area. This causes the skull to have an unusual shape.

If you notice that your baby’s fontanelles seem to have closed early, if you can feel a ridge along your baby’s skull, or if you think that your baby’s head has an unusual shape, take your baby to see their GP or paediatrician.

What if a fontanelle doesn’t close?

Your baby’s fontanelles may not close on time for several reasons. Common reasons for delayed fontanelle closure include congenital hypothyroidism (low thyroid hormones from birth), Down syndrome, increased pressure inside the brain, rickets and familial macrocephaly (a genetic tendency to have a large head).

If one or both of your baby’s fontanelles haves not closed by the time they are 2 years old, speak to your GP or paediatrician.

If you have any concerns about your baby’s fontanelles you should make an appointment to see your child health nurse, GP or paediatrician.

Speak to a maternal child health nurse

Call Pregnancy, Birth and Baby to speak to a maternal child health nurse on 1800 882 436 or video call. Available 7am to midnight (AET), 7 days a week.

Sources:
Children’s Health Queensland Hospital and Health Service (Craniosynostosis), American Family Physician (The Abnormal Fontanel), Australian Family Physician (The 6 week check - An opportunity for continuity of care), WA Health (Bulging Anterior Fontanelle), The Royal Children's Hospital Melbourne (Clinical Practice Guidelines: Dehydration)

Learn more here about the development and quality assurance of healthdirect content.

Last reviewed: February 2022
